High Quality Handkerchief Tissue Production Machine - OK-800 4 lanes high speed handkerchief tissue production line – OK Detail:

Main Performance and Structure Features:

1、Adopt U type structure layout,Automatic paper splicing、continuous folding、 packing，beautiful appearance,smooth packing,stable and reliable structure.

2、consistent tension control for parent paper unwinding;step-less regulation for paper calendaring speed.

3、Adopt America FIFE parent paper automatic traverse rectifying

4、Programmable controller to control intensively, operate by touch screen, with the function of displaying failure and warning, automatically stopping and protection, statistics data.

5、Paper size and quantity of each bag can be made according to the

customer’s demand. Such as paper size can be 200mm×200mm,210 ×210mm etc, quantity of each bag 8、10、12 pieces etc.

6、include packing film automatic splicing unit

7、Other selective functions: embossing roller, perforation device and automatic labeling machine, can be matched our handkerchief tissue bundling packing machine.

Supply scope

Supply scope of single equipment: include unwind stand, automatic paper splicing unit, calendaring unit,embossing(pin to flat), folding, counting, packing film automatic splicing unit, single packing, labeling and convey unit, bundling packing machine

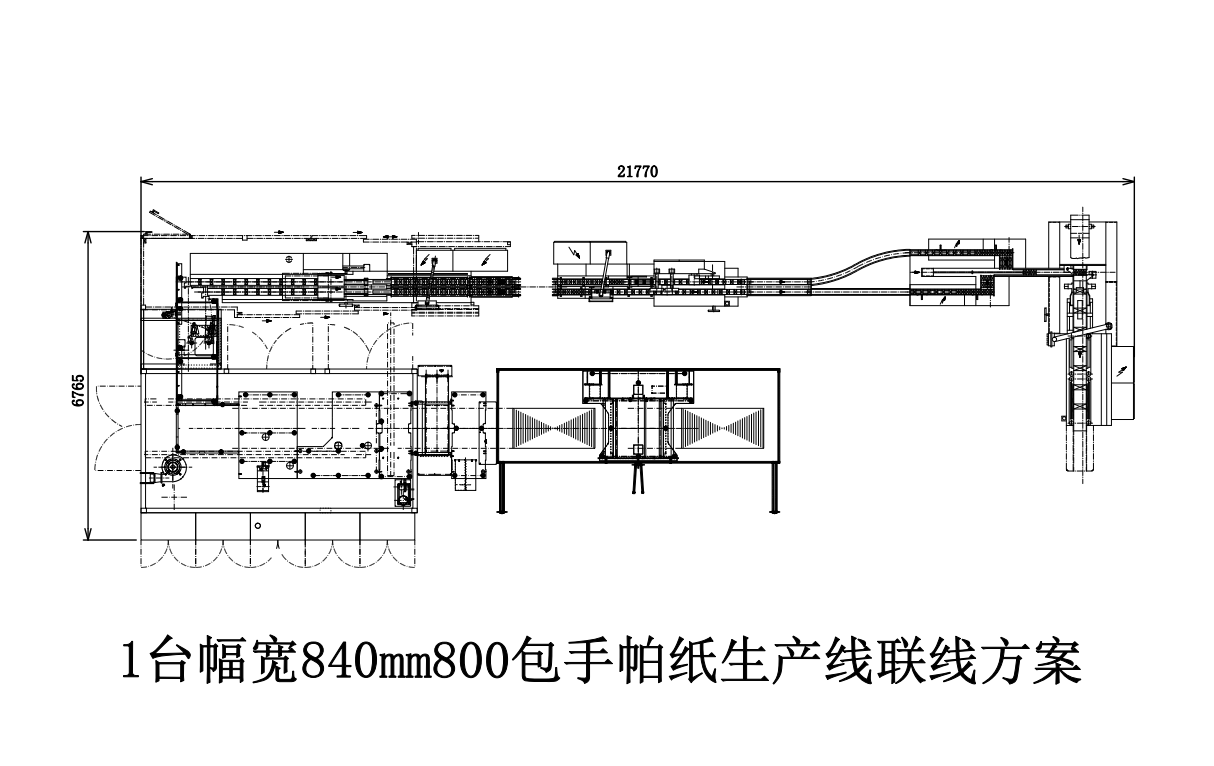

f0c40726f17c78bd44122b3f0e1a86d

Equipment Main Technical Parameters



 Item

Technical Parameters

Design speed

6000 sheets/min, 800 packs/min

working speed

5000 sheets/min,650 packs/min

(depending on packing specification, sheets/pack)

Parent paper specification

width 840mm,can also be customized

parent paper diameter

Parent paper diameter ≤1800mm, inner core diameter 152.4mm

Parent paper application

Parent paper gsm: 2 ply（15-18.5gsm), 3 ply（13-15.3gsm),

4 ply（13-15.3gsm)

Packing Specification

Ultra mini size：（62mm±2mm）×（47mm±2mm）×（20mm±2mm）

Mini size：（72mm±2mm）×（53mm±2mm）×（24mm±2mm）

Standard size：（105mm±2mm）×（53mm±2mm）×（24mm±2mm）

sheets/pack

6、8、10

Machine dimension

22000×6750×1900MM

machine weight

12000KG

main machine power

55KW

compressed air

0.5Mpa

air flow

200L/min

Packing film changing mode

 one roll in using, one roll as spare, automatic splicing

film roll diameter

0-450MM

packing material

CPP、PE、BOPP double side heat sealing film

Packing material thickness

0.025 – 0.04mm



Product detail pictures:

High Quality Handkerchief Tissue Production Machine - OK-800 4 lanes high speed handkerchief tissue production line – OK detail pictures

High Quality Handkerchief Tissue Production Machine - OK-800 4 lanes high speed handkerchief tissue production line – OK detail pictures
