OK-606 Type Full-auto Facial Tissue Single Packing Machine
Performance and features
（1）The packaging structure adopts a four-station high-speed servo turntable, which is easy to adjust. It has a wide range of packaging specifications, and produces a square and beautiful packaging effect.
（2）It adopts high-precision motion controller 12-axis servo control system and touch screen to ensure accurate control of packaging size, HMI display.
（3）The film cutting and perforation line cutting knives adopt spring rotating knife mode, which is powered by servo motor. It will not work when there is no material, thus increasing the service life of the cutter.
（4）Friendly HMI. After inputting the relevant packaging parameters, the initial position is automatically calculated and the relevant setting parameters can be saved, which facilitates specification changes and reduces replacement time.
（5）The electronic handwheel replaces the mechanical handwheel structure, which is convenient and accurate to control.
（6）Equipped with automatic film tension adjustment device.
（7）Optional special-shaped perforation (customer selection).
Model & Main Technical Parameters
|
Model |
OK-606 |
|

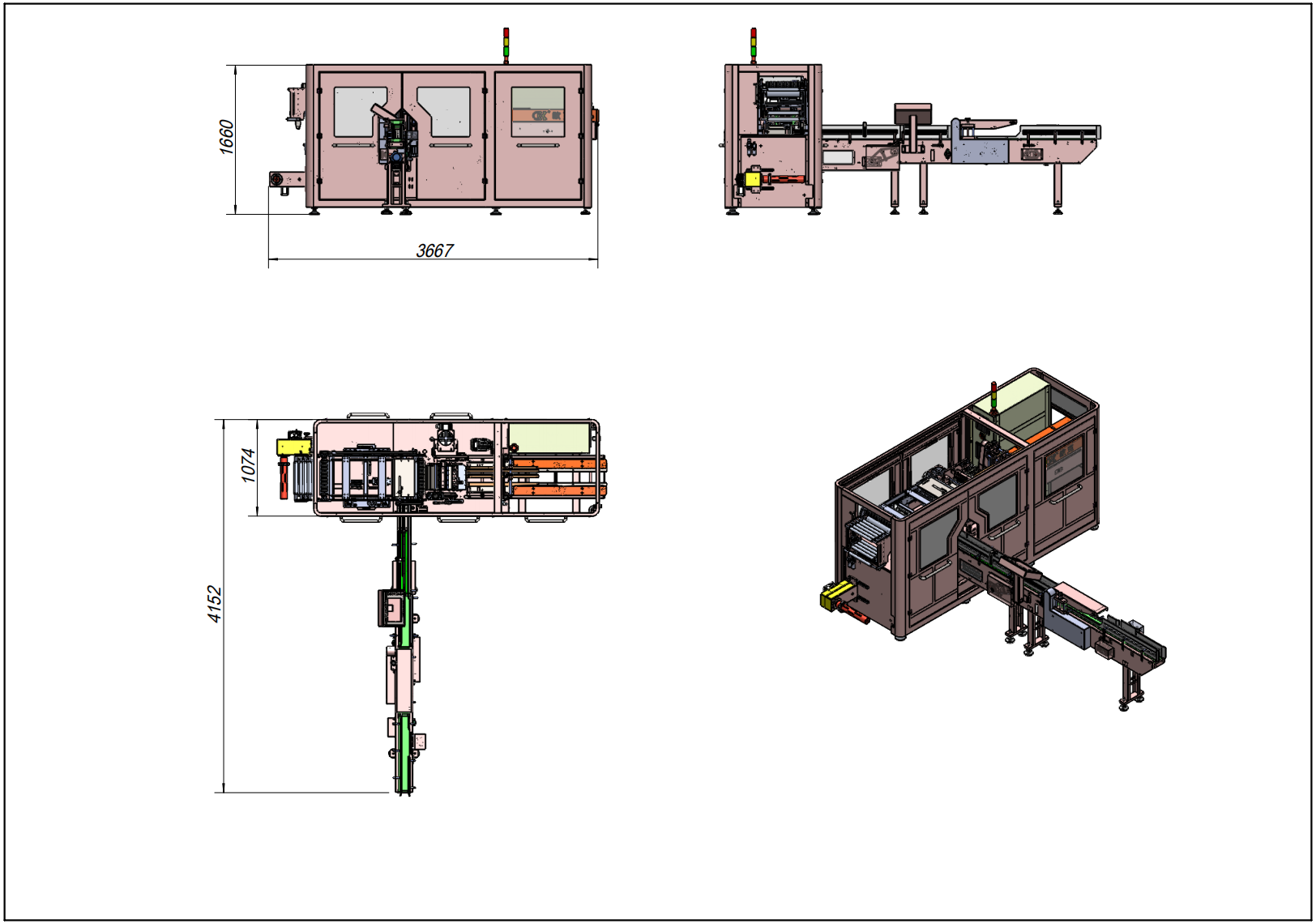

Outline Dimension(mm) |
3585mm×6260mm × 1650mm |
|
Speed(bags/min) |
Normal facial tissue single pack ≤ 200/min However, product specifications, packaging material type and thickness, folding and cutting effects will affect the actual speed. |
|
Packing size(mm) |
(100-200)x(85-105)x(25-90) |
|
Machine’s Weight(KG) |
5000 |
|
Power Supply |
380V 50HZ |
|
Compressed air (MPa): |
pressure 0.5-0.8 (the air source and external air inlet pipe required for the packaging machine shall be provided by the buyer); |
|
Packing Film |
CPP (double-sided heat sealing film) Maximum outer diameter of packaging film: φ 450mm； Packaging film core diameter: 75mm---78mm; |
|
Total Power
|
about 12KW |
