N Folded Hand Towel Folding Machine

Short Description:


Product Detail

Product Tags

Machine's Layout

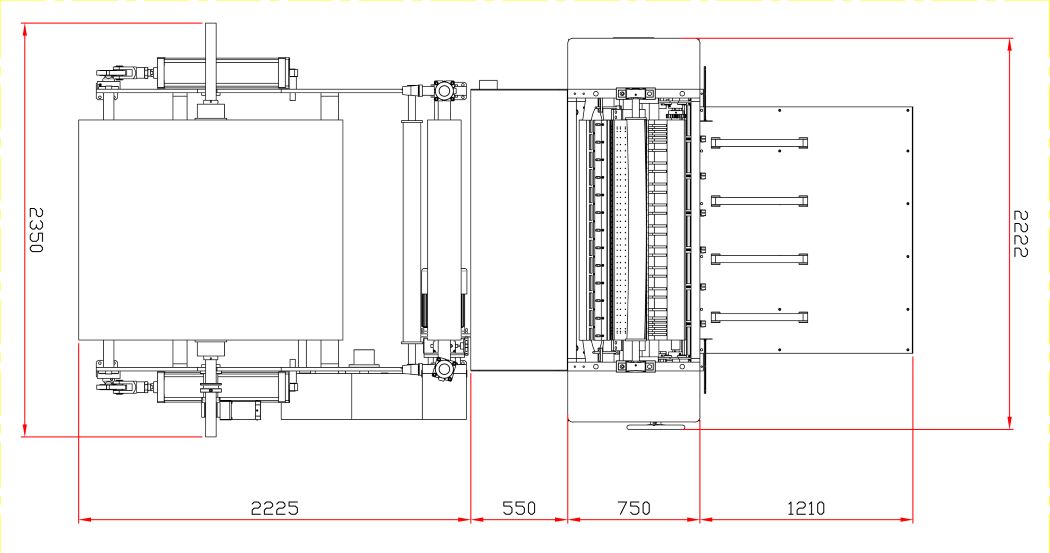

N Folded hand towel folding machine layout

Model & Main Technical Parameters

Model

2L

3L

4L

5L

7L

Max Width of Base Paper

500mm

750mm

950mm

1200mm

1450mm

Longitudinal Cutting Knife

1 group

2 group

3 group

4 group

6 group

Vacuum System

27KW

27KW

27KW

27KW

27KW

Main Unit Power

3 KW

4 KW

4 KW

5.5KW

5.5KW

Overall Size(L x W x H)

4000*1500*1900mm

4000*2100*1900mm

4000*2100*1900mm

4000*2300*1900mm

4000*2530*1900mm

Overall Weight

3000kg

4000kg

4500kg

5000kg

6500kg

Folding Speed

400-800 Sheets/min/line

400-800 Sheets/min/line

400-800 Sheets/min/line

400-800 Sheets/min/line

400-800 Sheets/min/line

Max Diameter of Base Paper

ɸ1200mm/ɸ1500mm

ɸ1200mm/ɸ1500mm

ɸ1200mm/ɸ1500mm

ɸ1200mm/ɸ1500mm

ɸ1200mm/ɸ1500mm

Core Inner Diameter

ɸ76.2mm

ɸ76.2mm

ɸ76.2mm

ɸ76.2mm

ɸ76.2mm

Pressure of Pneumatic System

>4kg/cm²(User supplied)

>4kg/cm²(User supplied)

>4kg/cm²(User supplied)

>4kg/cm²(User supplied)

>4kg/cm²(User supplied)
