OK-100B Type Full-Auto Box Tissue Cartoning Machine

Short Description:

Product Detail

Product Tags

Main Performance And Structure Features

1.Packing forms such as automatic feeding, box opening, boxing, batch No. printing, glue spreading, box sealing, etc. are adopted. Compact and reasonable structure, simple operation and adjustment.

2.Servo motor, touch screen, PLC control system and man-machine interface display make operation more clear and convenient. With high automation degree, the machine is more user-friendly.

3.The automatic material arranging and conveying mechanism is adopted to facilitate linked production with automatic production line, which can greatly reduce labor cost.

4.The photoelectric eye automatic detection tracking system is adopted. No box consumption without tissue feeding , so as to save packing materials to the utmost extent.

5.With wide packing range and convenient adjustment, fast switching among various specifications and sizes can be realized.

6.No need changing moulds for specification change, but can be realized through adjustment.

7.Automatic stopping is available when the material boxing is not in place, and the main driving motor overload protection device is used, so that the machine is more safe and reliable.

8.With manual and automatic conversion.

9.It can be installed with Hot-melt Glue Machine.

10.According to customer requirements, the upturning type safety protective cover is adopted, Simple operation and beautiful appearance.


Machine's Layout

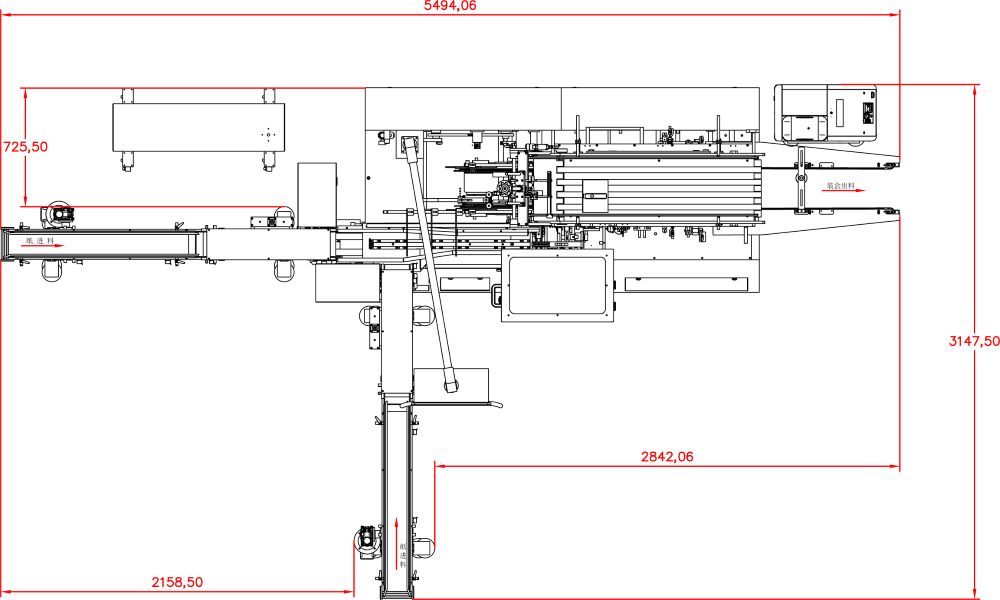

OK-100 双进料layout (1)

double infeed

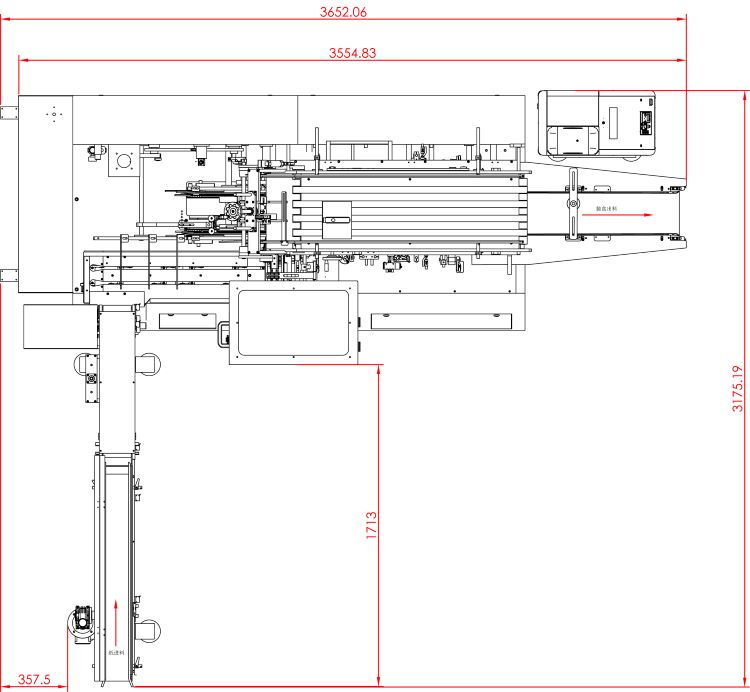

OK-100 单进料layout (2)

                                                                                                 single infeed

Model & Main Technical Parameters

Model OK-100B
Speed(boxes/min) ≤100
Carton size(mm) L240xW120xH90
Outline Dimension(mm) 5280x1600x1900
Power Consumption(KW) 8
Machine’s Weight (KG) 1500
Power supply 380V 50Hz
Compressed air pressure(MPA) 0.6
Air consumption (L/min) 120-160L
