OK-150 Type Handkerchief Tissue Single Lane Production Line

Short Description:


Product Detail

Product Tags

Main Performance And Structure Features

1.Adopt Straight line structure and layout, continuously folding and packing, beautiful appearance, smooth packing process, stable and reliable structure.

2.Constant tension control raw paper's running, step-less regulation polishing speed for tissue.

3.Adopt BST raw paper automatic traverse rectifying, mini-type and standard-type tissue's package are applicable.

4.Programmable controller to control intensively, operate by touch screen, with the function of displaying failure and warning, automatically stopping and protection,statistics data.

5.Paper size and quantity of each bag can be made according to the customer's requirement Such as paper size can be 200mm×200mm,210 × 210mm etc, quantity of each bag 8、10、12 pieces etc. 6.Other selective functions:embossing roller, perforation device and automatic labeling machine,can be matched our handkerchief tissue bundling packing machine.

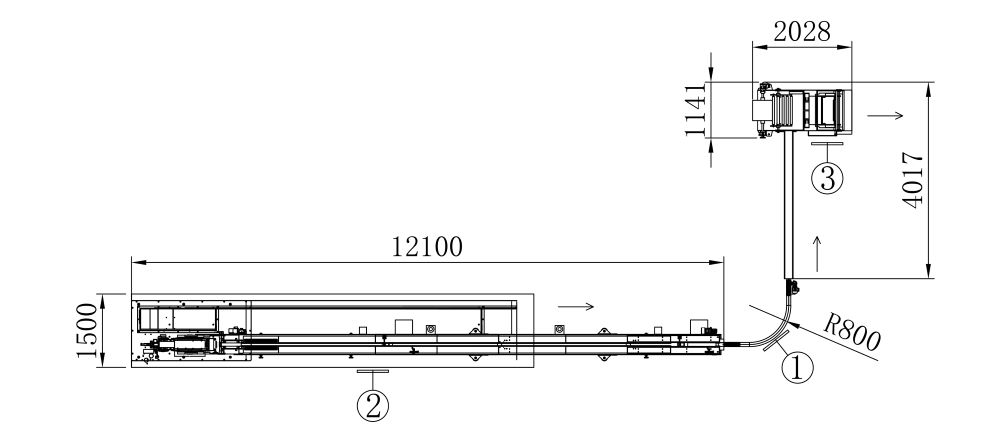

Machine's Layout:

OK-150 layout

Model & Main Technical Parameters

Model

OK-150

Speed(bags/min)

≤150

Raw paper width(mm)

205mm-210mm

Paper size(mm)

200mmx200mm,210mmx210mm

Pieces of each bag

6,8,10

Packing size(mm)

(70-110)x(50-55)x(16-28)

Outline Dimension(mm)

12500x1400x2100

Machine’s Weight(KG)

4000

Compressed air pressure(MPA)

0.6

Power supply

380V  50Hz

Total Power(KW)

36

Packing Film

CPP,PE,BOPP and double-side heat sealing film
