OK-702 Type Double Lanes Log Saw Cutting Machine

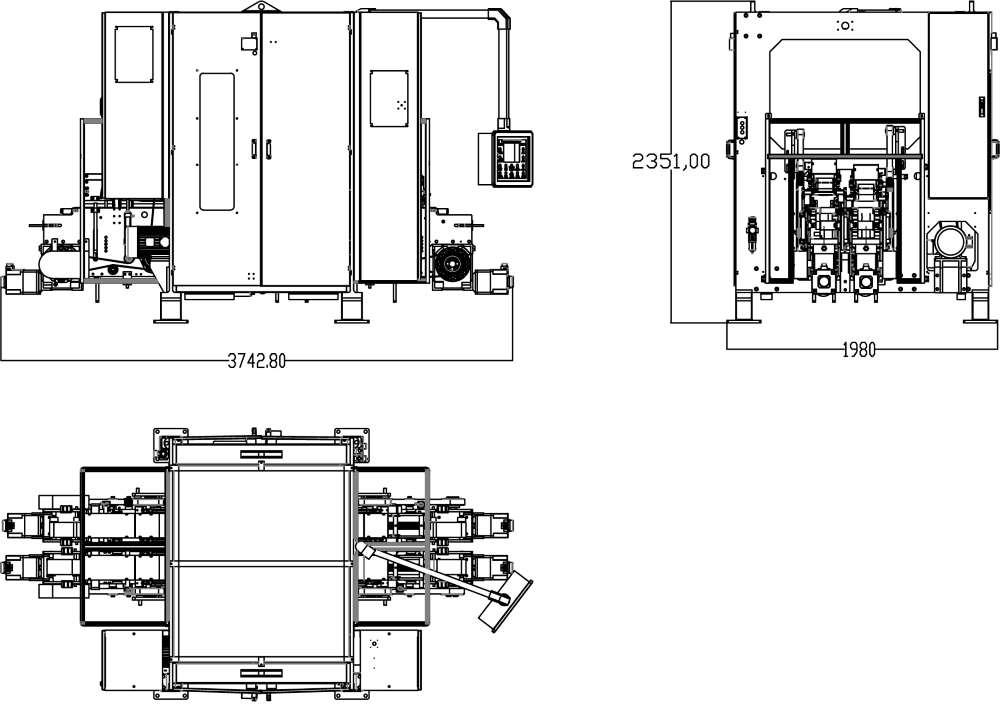

Machine's Layout
Model & Main Technical Parameters
|
Model |
OK-702A |
OK-702B |
|
| Cutting length | Variable,Servo control, Tolerance:±1mm | ||
| Designing speed | 0-150 cuts/min | 0-250 cuts/min | |
| Stable speed | 120 cuts/min | 200 cuts/min | |
| Function type | Movement of round blade in revolved swing and continuous and onward movement of paper roll with control | ||
| Driving control for material conveying | Drived by servo motor | ||
| Blade-grinding | Pneumatic grinding wheel,which the grinding time can be programming controlled by panel | ||
| Blade-greasing | Greasing by spraying oil reek, which the greasing time can be programming controlled by panel | ||
| Outer dia, of round blade for paper slitting |
610mm |
||
| Parameter setting |
Touch screen |
||
| Programming control |
PLC |
||
| Power |
10 KW |
||
| Cutting lane |
2 lanes |
||
