OK-702C Type Four Lanes Log Saw Cutting Machine

Short Description:

Product Detail

Product Tags

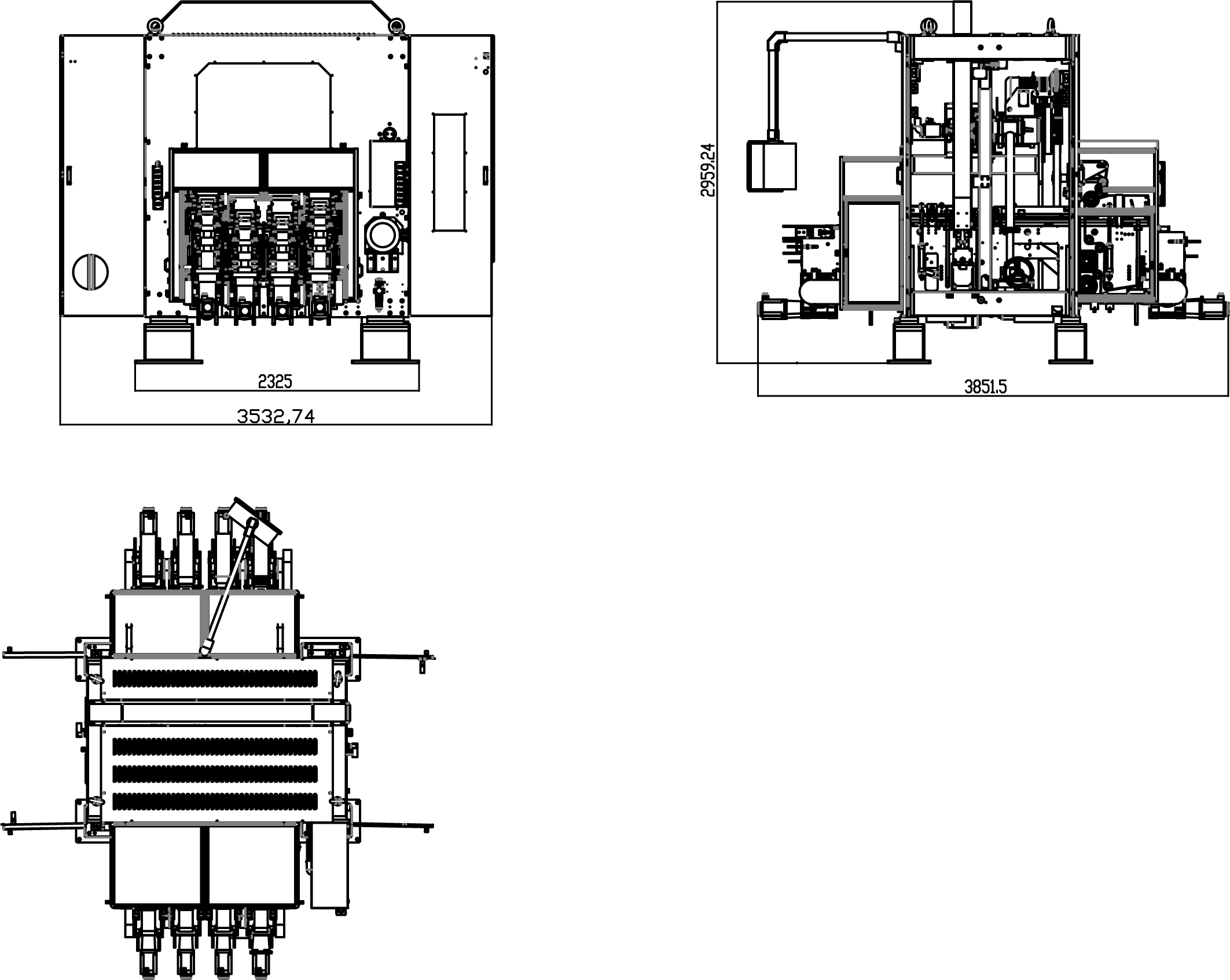

Machine's Layout


Model & Main Technical Parameters



Cutting length Variable , servo control , Tolerance±1mm
Designing speed 0-250 cuts/min
Stable speed 200 cuts/min
Function type Movement of round blade in revolved swing and continuous and onward movement of paper roll with control
Driving control for material conveying Drived by servo motor
Blade-grinding Pneumatic grinding wheel,which the grinding time can be programming controlled by panel
Blade-greasing Greasing by spraying oil reek,which the greasing time can be programming controlled by panel
Outer dia.of round blade for paper slitting 810mm
Parameter setting Touch screen
Programming control PLC
Power 38KW
Cutting lane 4 lanes
