OK-3600, 2860, 1860 Type Full-auto Facial Tissue Folding Machine
The high-speed facial tissue automatic folding production line adopts full servo control, the first half fold adopts vacuum adsorption process, matching multi lanes log saw cutting machine, master machine speed can reach 200 m/min or 14 logs/ minutes, the whole line adopts accumulator to buffer, distribute. the whole line configurate full servo facial tissue single packing machine, multi-function bundling packing machine and full automatic case packer, and can be compatible with the conventional products and E-commerce Product, daily capacity can reach 30-50 tons. And customer can select our high-precision automatic calendering, embossing, glue lamination unit to produce various embossed products, kitchen towel products, to meet the diverse needs of the market.

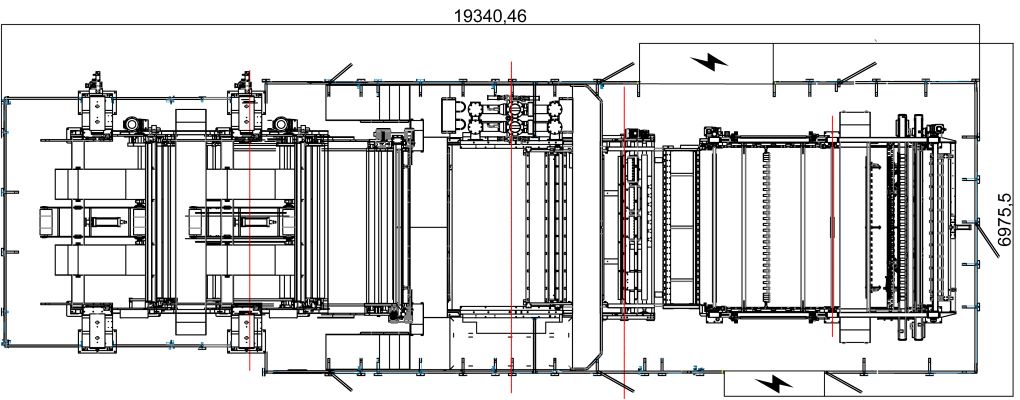

Machine's Layout
Model & Main Technical Parameters
| Model | OK-3600 | OK-2860 | OK-1860 | ||
|
A |
B |
C |
|||
| Designing speed | 200m/min or 15 lines/min | 170m/min or 11 lines/min | 170m/min or 15 lines/min | 200m/min or 15 lines/min | 170m/min or 11 lines/min |
| Working speed | 180m/min or 14 lines/min | 120m/min or 9 lines/min | 130m/min or 12 lines/min | 180m/min or 14 lines/min | 120m/min or 9 lines/min |
| Density |
13-22g/㎡ |
||||
| Raw paper ply |
1-4 ply selective |
||||
| Unwinding stand quantity |
2-8 optional group |
||||
| Unwinding stand paper web width | ≤3600mm | ≤2900mm | ≤1960mm | ||
| Unwinding Stand Roll Diameter | Max ɸ3000mm | Max ɸ3000mm | Max ɸ3000mm | ||
| Accumulator width | Can be ordered according to customer’s requirement | ||||
| Store quantity | Can be ordered according to customer’s requirement | ||||
| Paper width
(folding paper width) |
180mm、190mm、195mm、200mm、210mm、
Can be ordered according to customer’s requirement |
||||
| Folding way | V Type Interlaced Folding | ||||
| Divided Folding Sheets | 100-250 (even number sheet) | ||||
| Folding size of finished product | 90mm、95mm、98mm、100mm、105mm | ||||

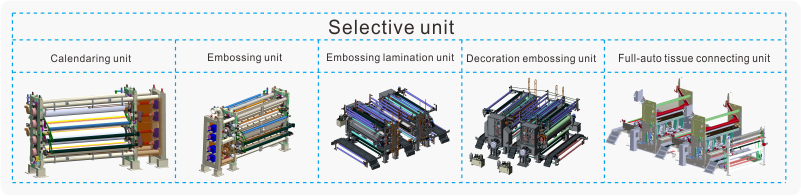

| Calendaring unit, embossing unit and Embossing lamination unit, decoration embossing unit, Full-auto tissue connecting unit can be matched according to customer’s requirement | |||||
