Tissue Log Automatic Separator

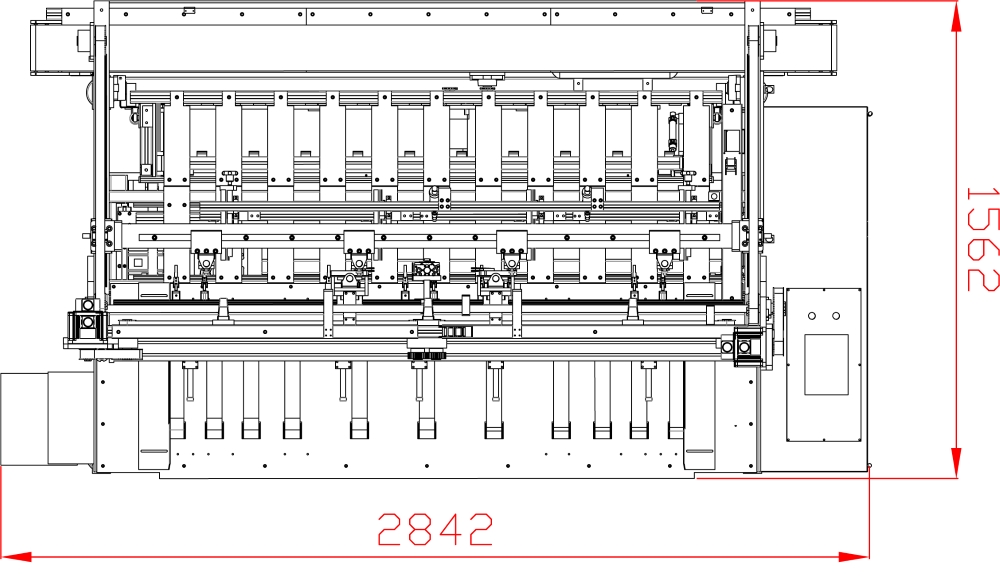

Machine's Layout
Model & Main Technical Parameters
| Model |
OK-FL-5T/7T/10T |
| Maximum jumbo roll width(mm) |
900-1050mm/1050-1450mm/1450-2050mm |
| Separate speed(logs/min) |
6-10 |
| Sheet separate range(sheets) |
600-1000 sheets/min/line |
| Outline dimension(mm) |
2481*1592*1861/2811*1592*1861mm/3352*1592*1861mm |
| Machine’s Weight(kg) |
650kg/720kg/850kg |
| Electrical control mode |
PLC programming control, servo motor control,HMI control 220V/380V/50HZ 2.25KW |
| Pneumatic system pressure |
5kg/c㎡ Pa |
| Drive mode |
By Timing belt driving,linear guide for linear movement , Pneumatic control |
| Separate mode |
Separating,moving and transferring by color mark sensor, Separating and counting Sheet tolerance 1-3 sheets |
